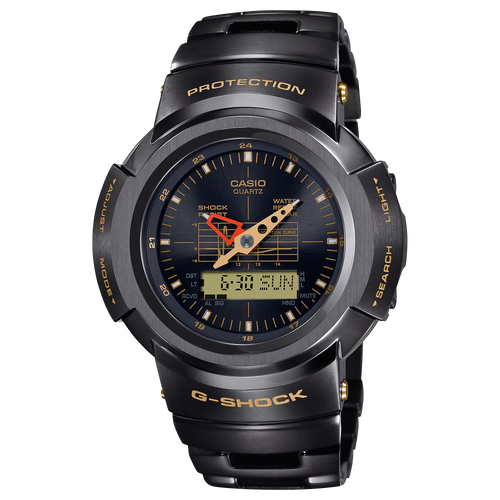

The original digital-analog G-SHOCK first went metal in the AWM-500 line. Now, the iconic AW-500G, originally released in 1989, has been reimagined in a striking full metal edition.

The dial features the original shock-resistance graph in gold print to take you back to those early G-SHOCK days. Meanwhile, today’s cutting-edge diamond-like carbon coating technology yields a highly scratch-resistant stainless steel bezel and band in elegant black. More than just a nostalgic revival, this is a timepiece packed with the latest Casio technology for full-on functionality.

For this collaboration, PORTER delivers a one-of-a-kind carrying case that pays homage to the original watch graphics and hand design. The zipper is inspired by the red hour hand and gold minute hand, and the same shock-resistance graph is stamped in gold on the case top.

Features

• Super Illuminator:
  Double LED light

• World Time:
  38 time zones (38 cities + coordinated universal time)

• Dual Time:
  Simultaneous display of the current time in two different time zones

• Daily Alarm, Hourly Time Signal:
  5 daily alarms sounds each day at the time you set. The value indicates how many alarms are available. The hourly time signal causes the watch to beep every hour on the hour

• Stopwatch (1/100 24HR):
  Accurate measurement of elapsed time with the touch of a button. The fraction indicates the unit of measurement, while the time figure indicates the maximum time measurement

• Timer (24H):
  Counts down from a start time specified by you. The value indicates the number of timers available, while the time figure indicates the maximum starting time. “REPEAT” indicates Auto Repeat, which automatically restarts timing at the end of each countdown

• Beeper Alarm:
  Beeper tone alarm sounds at the time you set

• Full Auto-Calendar:
  Allowances are made automatically for months of different lengths, including leap year

• 12/24-Hour Timekeeping:
  Times can be displayed in either 12-hour or 24-hour format

• Battery Level Indicator:
  Indicator shows the current battery level

• Water Resistant (20 BAR):
  The “BAR” value indicates the number of atmospheres to which water resistance is ensured. 20 BAR means water resistance to 20 atmospheres. Watches marked “200m” have the same water resistance as 20 BAR watches

• Mineral Glass:
  Hard glass resists scratching

• Case:
  Black IP

• Band:
  Black ion plated band with one-touch 3-fold Clasp

Specifications

• Case / bezel material: Stainless steel

• Solid Band

• One-touch 3-fold Clasp

• Stainless Steel Band

• Mineral Glass

• Neobrite

• Shock Resistant

• Screw Lock Back

• Diamond Like Coating

• 200-meter water resistance

• Tough Solar (Solar powered)

• Double LED light
  LED light for the face (Super illuminator, full auto LED light, selectable illumination duration (1.5 seconds or 3 seconds), afterglow)
  LED backlight for the digital display (Super illuminator, full auto LED light, selectable illumination duration (1.5 seconds or 3 seconds), afterglow)

• Time calibration signal reception Auto receive up to six* times a day (remaining auto receives canceled as soon as one is successful) *5 times a day for the Chinese calibration signal
  Manual receive
  The latest signal reception results

• Time Calibration Signals
  Station name: DCF77 (Mainflingen, Germany)
  Frequency: 77.5 kHz
  Station name: MSF (Anthorn, England)
  Frequency: 60.0 kHz
  Station name: WWVB (Fort Collins, United States)
  Frequency: 60.0 kHz
  Station name: JJY (Fukushima, Fukuoka/Saga, Japan)
  Frequency: 40.0 kHz (Fukushima) / 60.0 kHz (Fukuoka/Saga)
  Station name: BPC (Shangqiu City, Henan Province, China)
  Frequency: 68.5 kHz

• Hand shift feature (Hands move out of the way to provide an unobstructed view of digital display contents)

• World time
  31 time zones (48 cities + coordinated universal time), daylight saving time on/off, Home city/World time city swapping

• 1/100-second stopwatch
  Measuring capacity: 00’00”00～59’59”99
  Measuring modes: Elapsed time, split time, 1st-2nd place times
  Countdown timer
  Measuring unit: 1 second
  Countdown range: 100 minutes
  Countdown start time setting range: 1 second to 100 minutes (1-second increments, 1-minute increments)

• 5 daily alarms (with countdown)

• Hourly time signal

• Battery power indicator

• Power Saving (hands stop to save power when the watch is left in the dark)

• Full auto-calendar (to year 2099)

• 12/24-hour format

• Button operation tone on/off

• Regular timekeeping
  Analog: 2 hands (hour, minute (hand moves every 20 seconds))
  Digital: Hour, minute, second, pm, month, date, day

• Accuracy: ±15 seconds per month (with no signal calibration)

• Approx. battery operating time:
  11 months on rechargeable battery (operation period with normal use without exposure to light after charge)
  28 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge)

• Size: 51.8×44.5×14.2mm

• Total weight: 175g

• Module: 5640
