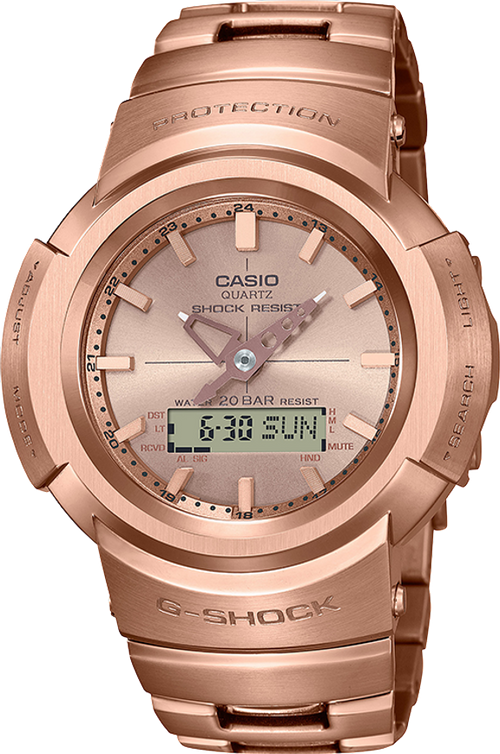

This is an AWM-500 Series of full-metal models of G-Shock's first analog-digital watches. Based on the AW-500 model that was released in 1989—the first-generation analog-digital combination G-Shock watch—these models use hardy stainless steel on their bezels and bands. Rose gold ion plating has been applied to the entire model.

The band was developed specifically for the AWM-500 and manages to recreate the smooth shape of the AW-500 by using a curved design that melds into the case. The back of the watch features Screw Lock Back. A mirror and hairline finish has been applied to each surface of the bezel, and the use of 3D indices and vapor deposition treatment on the dial enhances the feel of the watch.

The time is automatically corrected within Multi-Band 6 areas. Additionally, Tough Solar technology provides a stable source of power and the watch is packed with functional features such as high-luminance Full Auto LED illumination and World Time.

Features

• Super Illuminator
  Double LED light

• World Time
  38 time zones (38 cities + coordinated universal time)

• Dual Time
  Simultaneous display of the current time in two different time zones

• Daily Alarm, Hourly Time Signal
  5 daily alarms sounds each day at the time you set. The value indicates how many alarms are available. The hourly time signal causes the watch to beep every hour on the hour

• Stopwatch (1/100 24HR)
  Accurate measurement of elapsed time with the touch of a button. The fraction indicates the unit of measurement, while the time figure indicates the maximum time measurement

• Timer (24H)
  Counts down from a start time specified by you. The value indicates the number of timers available, while the time figure indicates the maximum starting time. “REPEAT” indicates Auto Repeat, which automatically restarts timing at the end of each countdown

• Beeper Alarm
  Beeper tone alarm sounds at the time you set

• Full Auto-Calendar
  Allowances are made automatically for months of different lengths, including leap year

• 12/24-Hour Timekeeping
  Times can be displayed in either 12-hour or 24-hour format

• Battery Level Indicator
  Indicator shows the current battery level

• Water Resistant (20 BAR)
  The “BAR” value indicates the number of atmospheres to which water resistance is ensured. 20 BAR means water resistance to 20 atmospheres. Watches marked “200m” have the same water resistance as 20 BAR watches

• Mineral Glass
  Hard glass resists scratching

• Case
  Rose gold ion plated case

• Band
  Rose gold ion plated band with one-touch 3-fold Clasp

Specifications

• Case / bezel material: Stainless steel
• One-touch 3-fold Clasp

• Stainless Steel Band

• Solid Band

• Mineral Glass

• Neobrite

• Shock Resistant

• Screw Lock Back

• Rose gold ion plated case

• Rose gold ion plated band

• 200-meter water resistance

• Tough Solar (Solar powered)

• Double LED light
  LED light for the face (Super illuminator, full auto LED light, selectable illumination duration (1.5 seconds or 3 seconds), afterglow)
  LED backlight for the digital display (Super illuminator, full auto LED light, selectable illumination duration (1.5 seconds or 3 seconds), afterglow)

• Time calibration signal reception
  Auto receive up to six* times a day (remaining auto receives canceled as soon as one is successful)
  *5 times a day for the Chinese calibration signal
  Manual receive
  The latest signal reception results

• Time Calibration Signals
  Station name: DCF77 (Mainflingen, Germany)
  Frequency: 77.5 kHz
  Station name: MSF (Anthorn, England)
  Frequency: 60.0 kHz
  Station name: WWVB (Fort Collins, United States)
  Frequency: 60.0 kHz
  Station name: JJY (Fukushima, Fukuoka/Saga, Japan)
  Frequency: 40.0 kHz (Fukushima) / 60.0 kHz (Fukuoka/Saga)
  Station name: BPC (Shangqiu City, Henan Province, China)
  Frequency: 68.5 kHz

• Hand shift feature (Hands move out of the way to provide an unobstructed view of digital display contents)

• World time
  31 time zones (48 cities + coordinated universal time), daylight saving time on/off, Home city/World time city swapping

• 1/100-second stopwatch
  Measuring capacity: 00’00”00～59’59”99
  Measuring modes: Elapsed time, split time, 1st-2nd place times

• Countdown timer
  Measuring unit: 1 second
  Countdown range: 100 minutes
  Countdown start time setting range: 1 second to 100 minutes (1-second increments, 1-minute increments)

• 5 daily alarms (with countdown)

• Hourly time signal

• Battery power indicator

• Power Saving (hands stop to save power when the watch is left in the dark)

• Full auto-calendar (to year 2099)

• 12/24-hour format

• Button operation tone on/off

• Regular timekeeping
  Analog: 2 hands (hour, minute (hand moves every 20 seconds))
  Digital: Hour, minute, second, pm, month, date, day

• Accuracy: ±15 seconds per month (with no signal calibration)

• Approx. battery operating time:
  11 months on rechargeable battery (operation period with normal use without exposure to light after charge)
  28 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge)

• Size of case: 51.8×44.5×14.2mm

• Total weight: 175g

• Module: 5640
